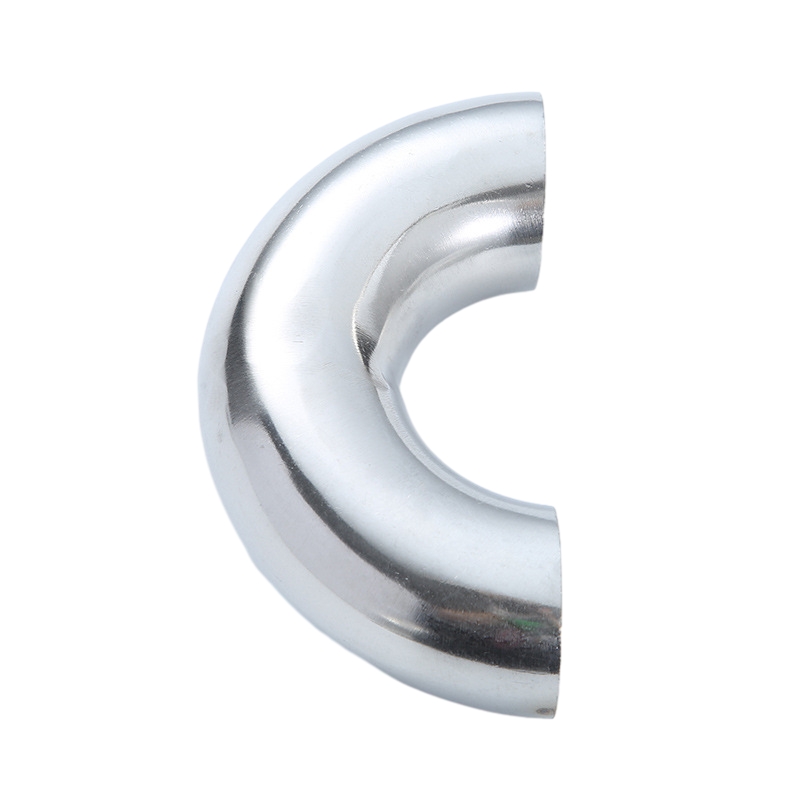

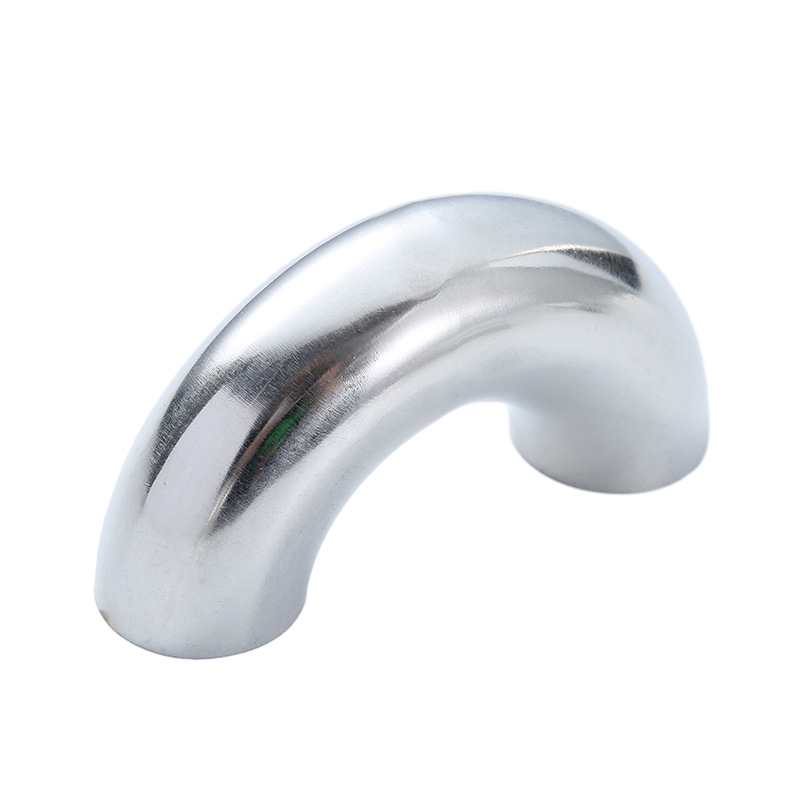

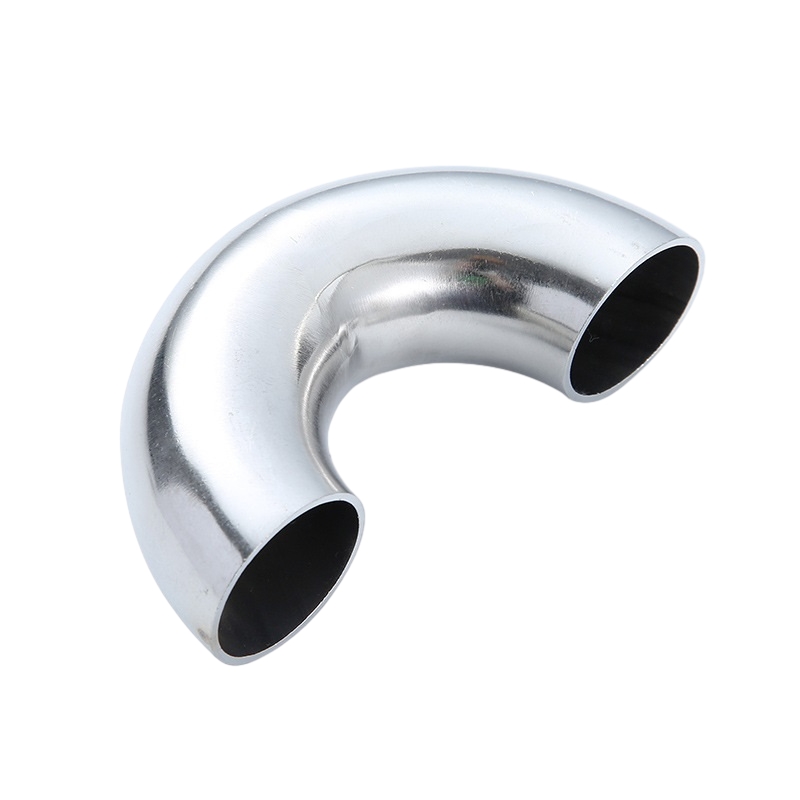

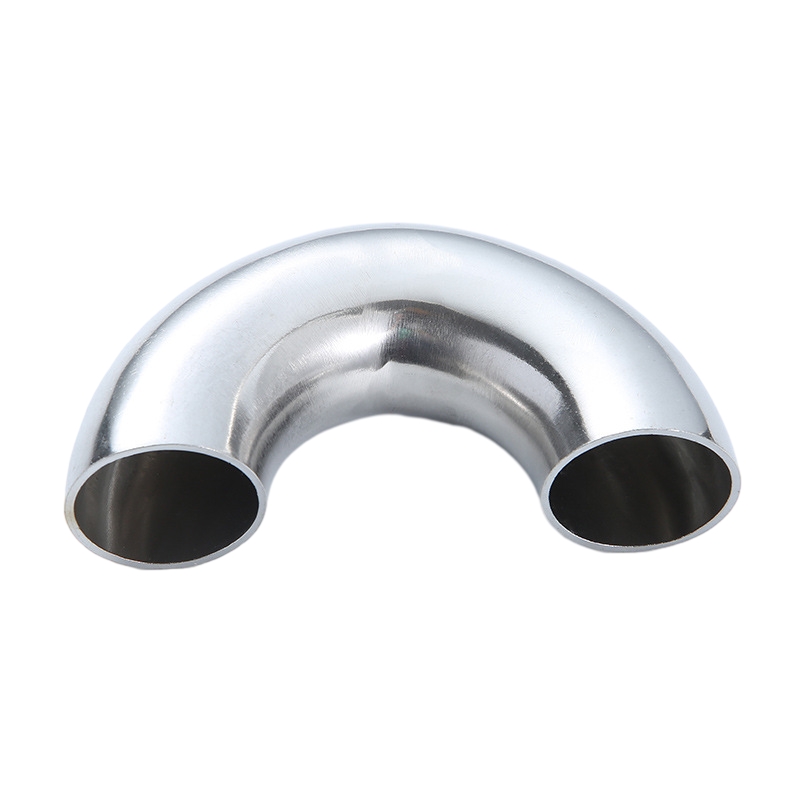

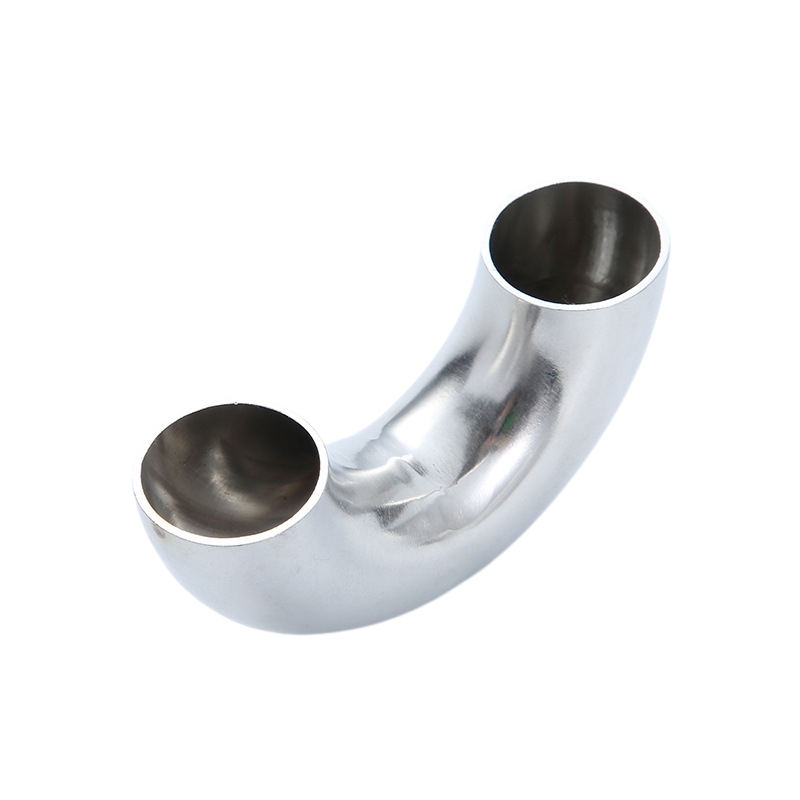

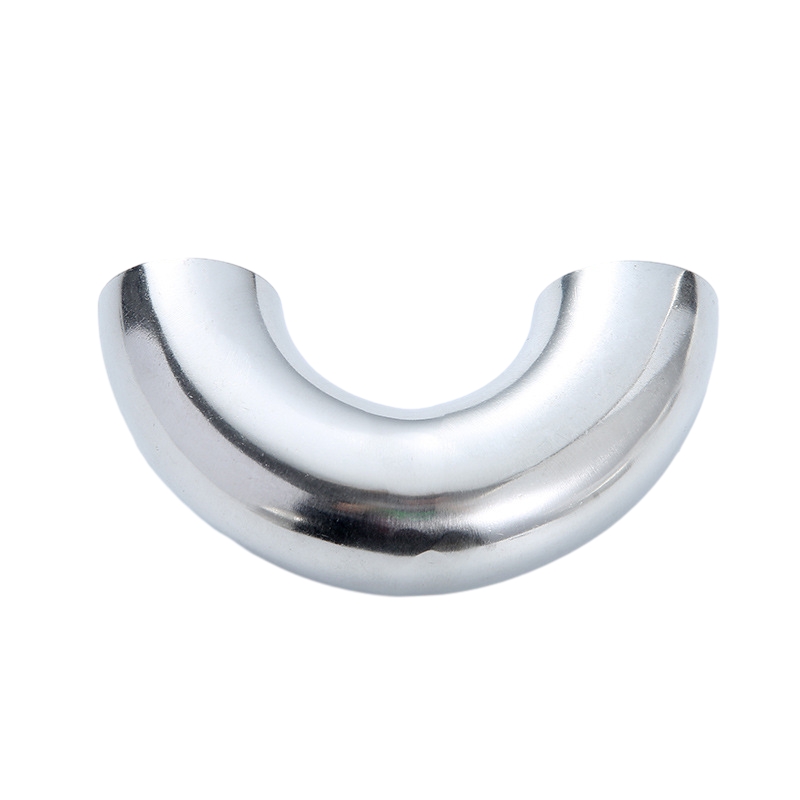

The 180°return (short radius) turns the pipe 180 degrees to change the direction of fluid flow. Compared with long-radius bends, Stainless Steel 180° Short Radius Tube Bends have a smaller bending radius, making the pipeline more compact. It presents a complete U-shaped curve shape with a bending angle of 180°.
The bend radius is usually 1 times the diameter of the pipe, resulting in a tighter curvature and taking up less space. As a pipe rerouting connector, the Stainless Steel 180°Short Radius Tube Bends allow the pipe to reverse flow or completely change the flow direction. At the same time, it enables the pipeline to adapt to compact layout and installation requirements and ensures the smooth operation of the pipeline system.
Stainless steel short-radius tube bends can be well used in various industrial fields due to their good anti-oxidation and anti-corrosion properties. Such as oil refineries, wastewater management systems, food processing industries, petrochemical industries, etc.
Introduction
|
180° Short Radius Tube Bends |
|
|
Item |
Stainless Steel 180°Short Radius Tube Bends |
|
Standard |
3A, DIN, IDF/ISO, SMS etc. |
|
Material Grades |
SS304 SS316L |
|
Surface |
Bushing |
|
Type |
Welded |
|
size |
¾ - 6¼” |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
Plastic bag packing and carton packing |
|
Application |
Dairy, food, beer, beverage, pharmacy, cosmetic, and so on |
|

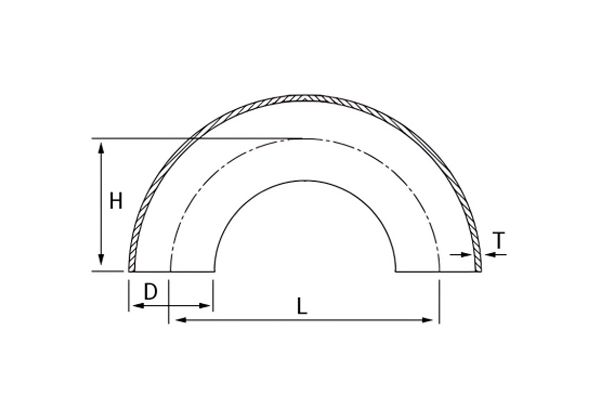

Size |
D(mm) |
L(mm) |
H(mm) |
T(mm) |
|
3/4" |
19 |
57 |
38 |
1.5 |
|
1" |
25 |
67 |
46 |
1.5 |
|
1 1/4" |
32 |
76 |
54 |
1.5 |
|
1 1/2" |
38 |
97 |
67.5 |
1.5 |
|
1 3*4" |
45 |
107 |
76 |
1.5 |
|
2" |
51 |
121 |
86 |
1.5 |
|
2 1/4" |
57 |
133 |
95 |
2 |
|
2 1/2" |
63 |
153 |
108 |
2 |
|
3" |
76 |
177 |
126.5 |
2 |
|
3 1/2" |
89 |
200 |
145 |
2 |
|
4" |
102 |
254 |
178 |
2 |
|
4 1/4" |
108 |
262 |
185 |
2 |
|
4 1/2" |
114 |
290 |
202 |
2 |
|
5 1/4" |
133 |
350 |
241.5 |
2 |
|
6 1/4" |
159 |
400 |
280 |
2 |
Xinhang Special Material Co., Ltd. Hangzhou Branch is famous China 304 Stainless Steel Return Bend 180°Short Radius Tube Bends suppliers and OEM/ODM 304 Stainless Steel Return Bend 180°Short Radius Tube Bends manufacturers, founded in 2007 and moved to Longyou Economic Development Zone, Zhejiang Province, in 2022. It covers an area of 130,000 square meters, more than 30 production lines, 300 workers, 20 R&D people, 30 inspection people and an annual output of 50,000 tons.
It has passed ISO9001:2008 quality management system, PED 97/23/EC EU Pressure Equipment Directive certification, China Special Equipment Manufacturing License (Pressure Tube) TS certification, ASME certification, provincial enterprise standardization management system, ISO14000:2004 environment management system, cleaner production (green enterprise), and a series of certifications, as well as China Classification Society (CCS), American Bureau of Shipping (ABS), British Register of Shipping (LR), Deutsche Veritas (GL), Bureau Veritas Society (BV), Det Norske Veritas (DNV), and Korean Register of Shipping (KR) factory certification.
The main products include stainless steel pipes, pipe fittings, flanges, valves, etc., which are widely used in petroleum, chemical industry, nuclear industry, smelting, shipbuilding, pharmaceuticals, food, water conservancy, electric power, new energy, mechanical equipment, and other fields. The company adheres to the corporate tenet of "quality for survival, reputation for development" and wholeheartedly serves every customer to create a win-win situation.
