A fitting with three openings, a wye is used to create branch lines. Wyes are similar to tees except that the branch line is angled to reduce friction and turbulence that could hamper the flow. The Y connector pipe may be more convenient because it has a better drainage system and may be easier to install due to space limitations.
It is a special type of fitting and may have one barb or several barbs on the surface. The effect is better when using the hose clamp or the crimp sleeve or ferrule, which can ensure that the hose will not shrink back under pressure.
In any system, connections may be the weakest link. Without a proper match between tubing and fittings, connections can be pulled off from vibration or tension, blown off from a pressure spike, or leak just enough to cause an accident.

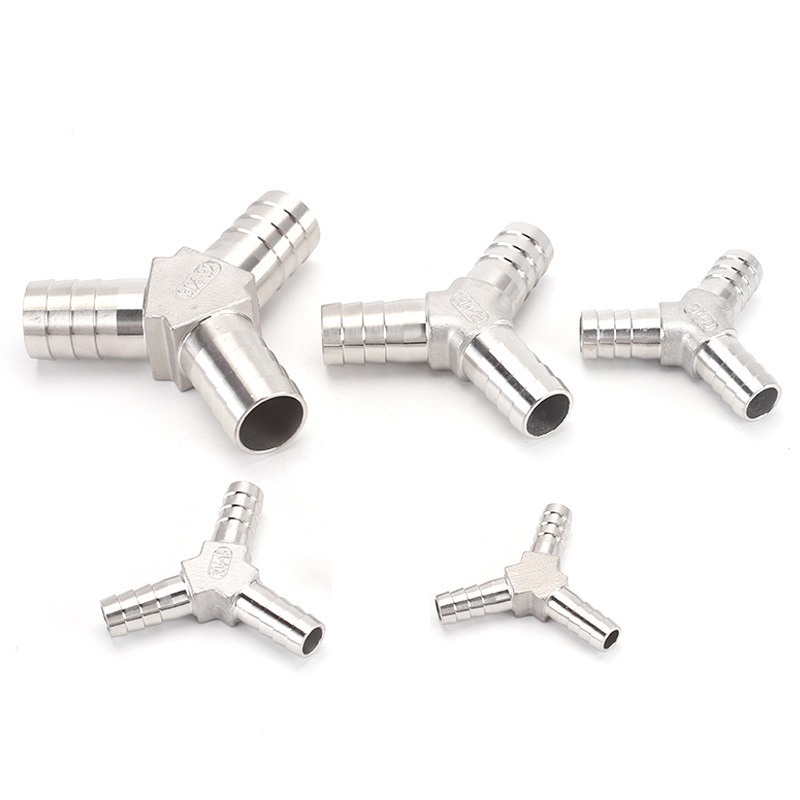

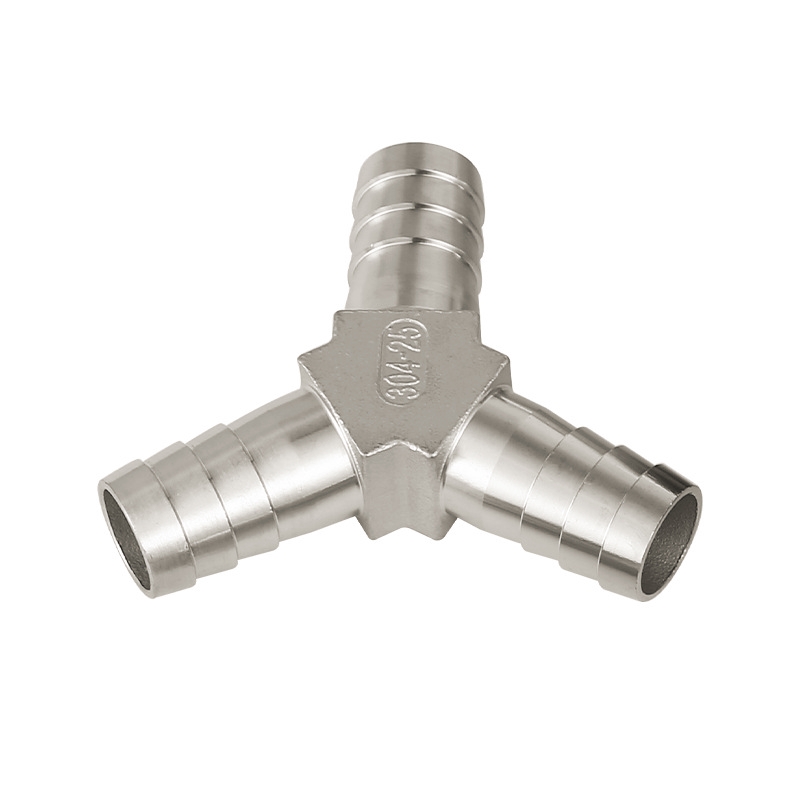

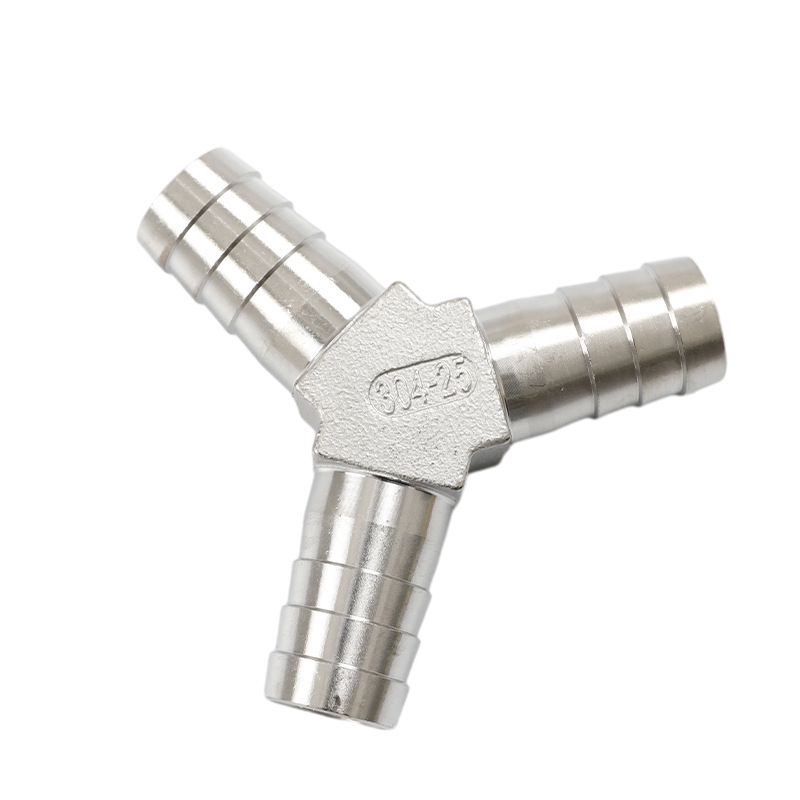

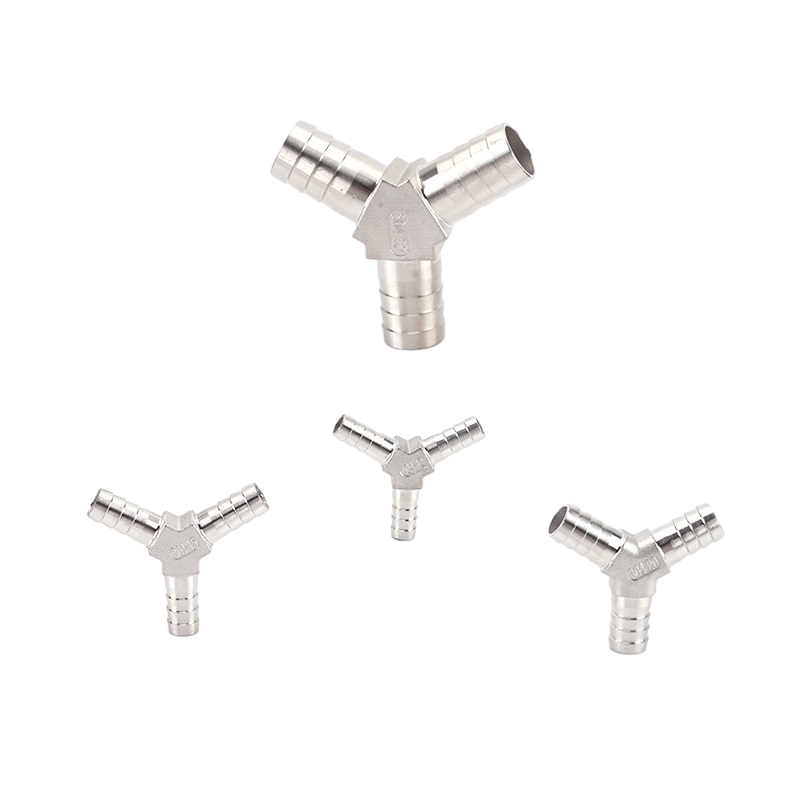

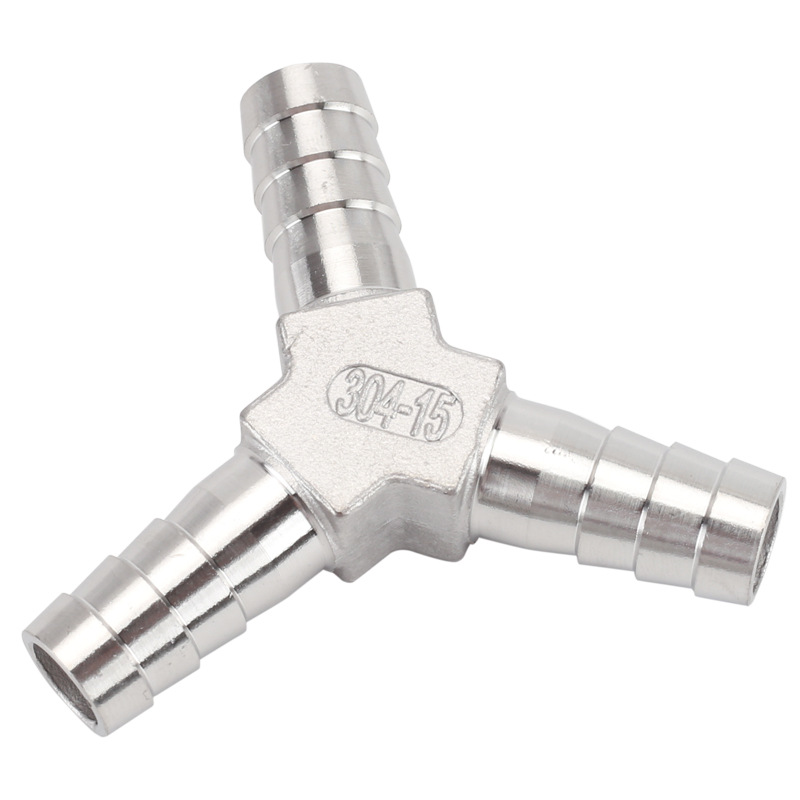

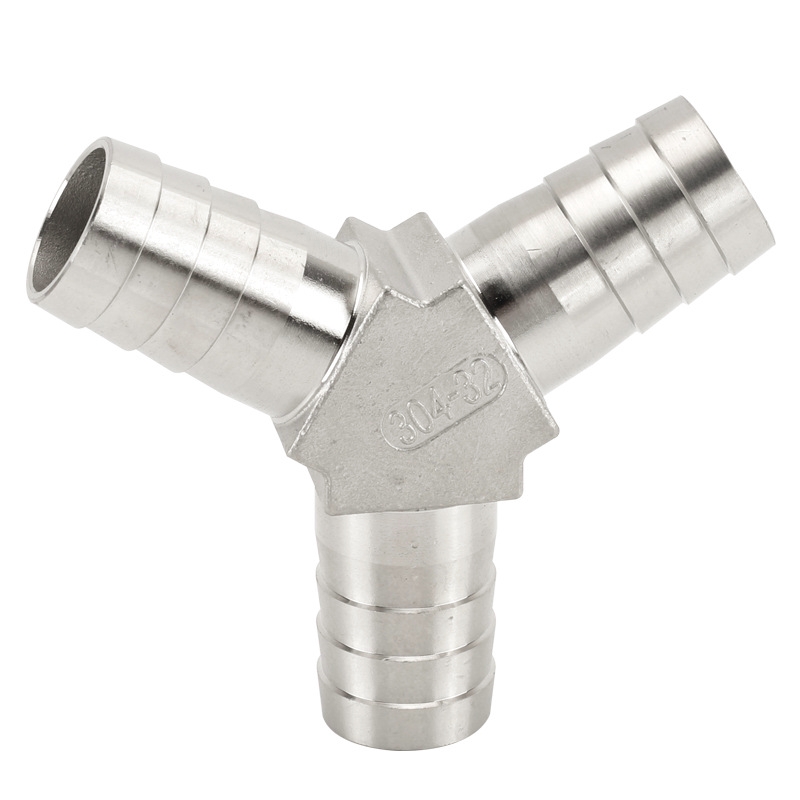

The barbed Y connector fitting is used in many systems, often for air, inert gases, water, oil, fuel, hydraulic fluid, and food and beverages, etc.
Introduction
|
Barbed Y |
|
|
Item |
Stainless Steel Barbed Y |
|
Standard |
DIN, ASTM |
|
Material |
Stainless Steel; Steel / Steel Alloys; Aluminum; Brass; Bronze; Copper; Nylon; POM; Acrylic; Derlin Etc |
|
Surface |
Heat Treatment, Sand Blasting, Polishing, Plating |
|
Type |
Pressure Casting |
|
size |
D6.0-32 |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
Inner-Plastic Bag; Outer -Standard Carton Box. |
|
Application |
Suitable for applications in agriculture, pharmaceutical, beer brewing and food, laboratory, chemical processing, etc. |
|

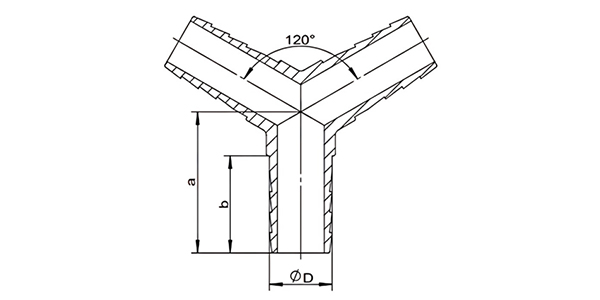

Ø D |
a |
b |
|
6.0 |
20.0 |
14.0 |
|
8.0 |
25.5 |
18.5 |
|
10.0 |
35.5 |
26.5 |
|
12.0 |
36.5 |
26.5 |
|
13.0 |
40.0 |
29.5 |
|
15.0 |
43.0 |
31.5 |
|
16.0 |
43.5 |
31.5 |
|
19.0 |
49.0 |
37.0 |
|
20.0 |
50.0 |
37.0 |
|
25.0 |
56.0 |
41.0 |
|
32.0 |
66.0 |
48.5 |
Xinhang Special Material Co., Ltd. Hangzhou Branch is famous China 3 Way Y Shaped Barbed Coupling Pipe Fitting For Water Oiland Gas suppliers and OEM/ODM 3 Way Y Shaped Barbed Coupling Pipe Fitting For Water Oiland Gas manufacturers, founded in 2007 and moved to Longyou Economic Development Zone, Zhejiang Province, in 2022. It covers an area of 130,000 square meters, more than 30 production lines, 300 workers, 20 R&D people, 30 inspection people and an annual output of 50,000 tons.
It has passed ISO9001:2008 quality management system, PED 97/23/EC EU Pressure Equipment Directive certification, China Special Equipment Manufacturing License (Pressure Tube) TS certification, ASME certification, provincial enterprise standardization management system, ISO14000:2004 environment management system, cleaner production (green enterprise), and a series of certifications, as well as China Classification Society (CCS), American Bureau of Shipping (ABS), British Register of Shipping (LR), Deutsche Veritas (GL), Bureau Veritas Society (BV), Det Norske Veritas (DNV), and Korean Register of Shipping (KR) factory certification.
The main products include stainless steel pipes, pipe fittings, flanges, valves, etc., which are widely used in petroleum, chemical industry, nuclear industry, smelting, shipbuilding, pharmaceuticals, food, water conservancy, electric power, new energy, mechanical equipment, and other fields. The company adheres to the corporate tenet of "quality for survival, reputation for development" and wholeheartedly serves every customer to create a win-win situation.
