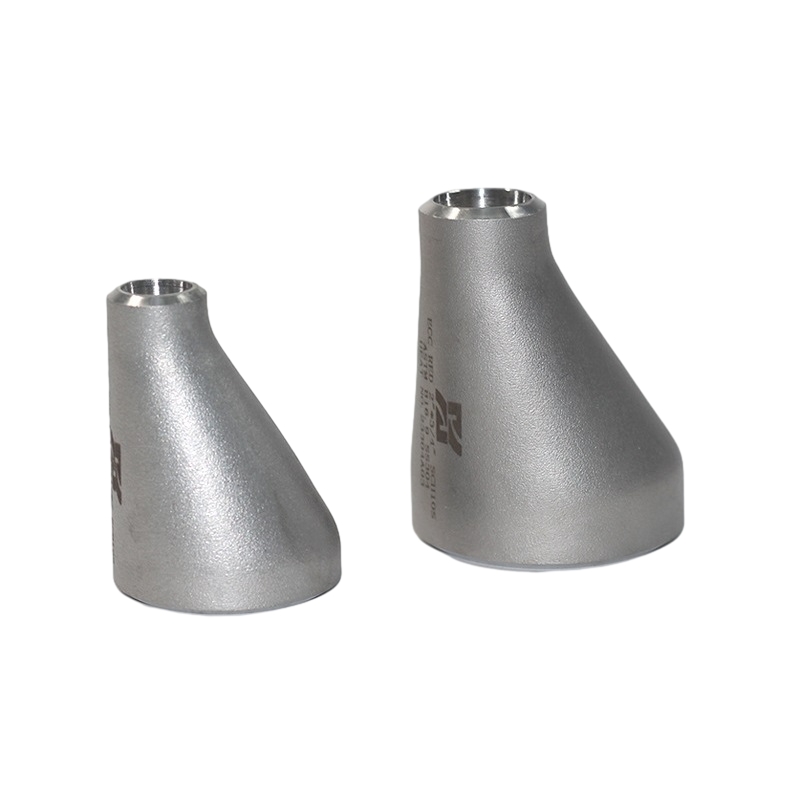

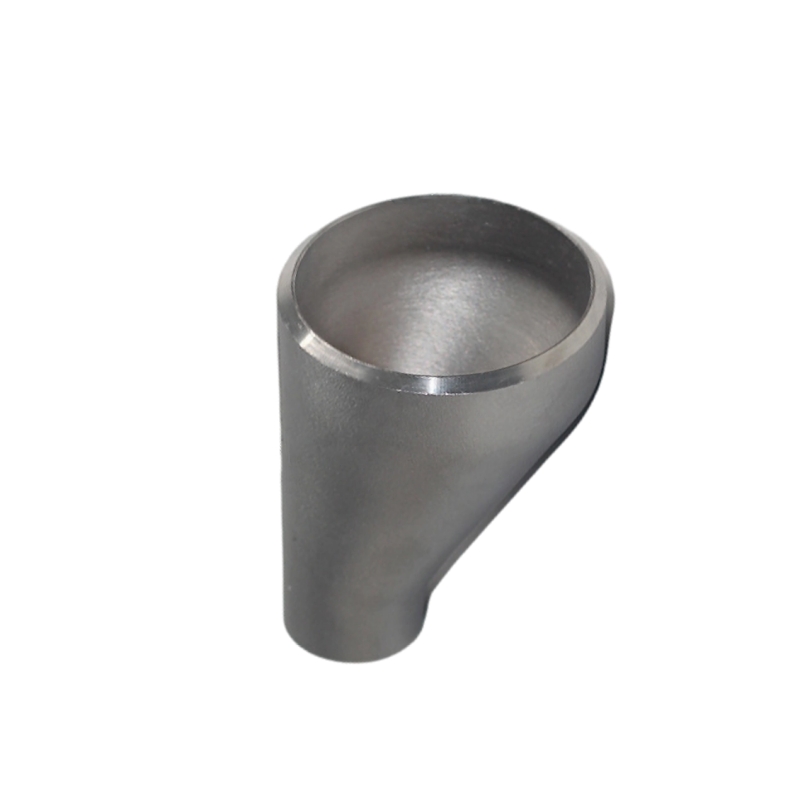

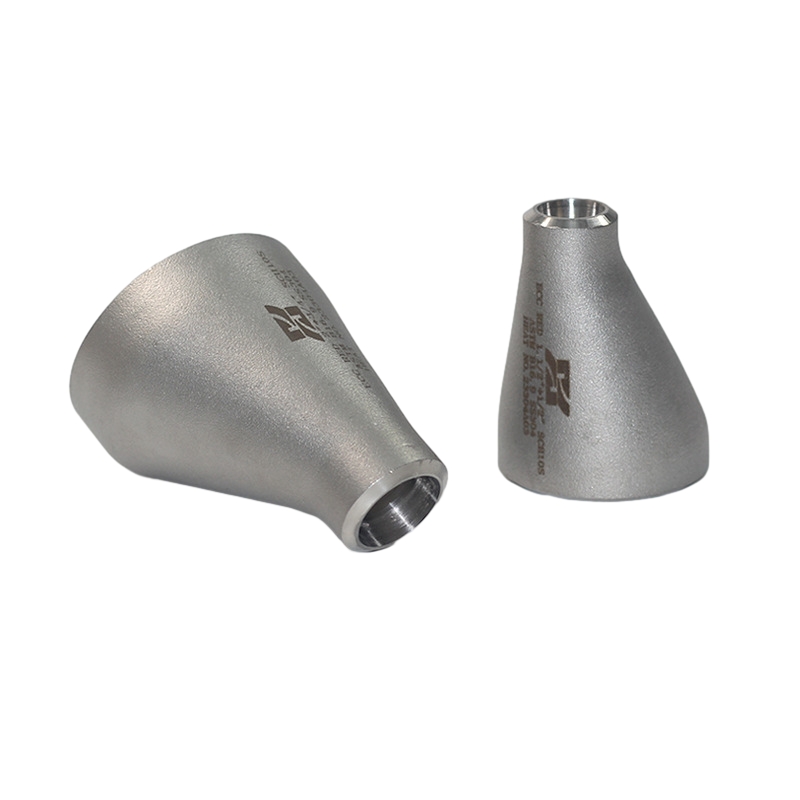

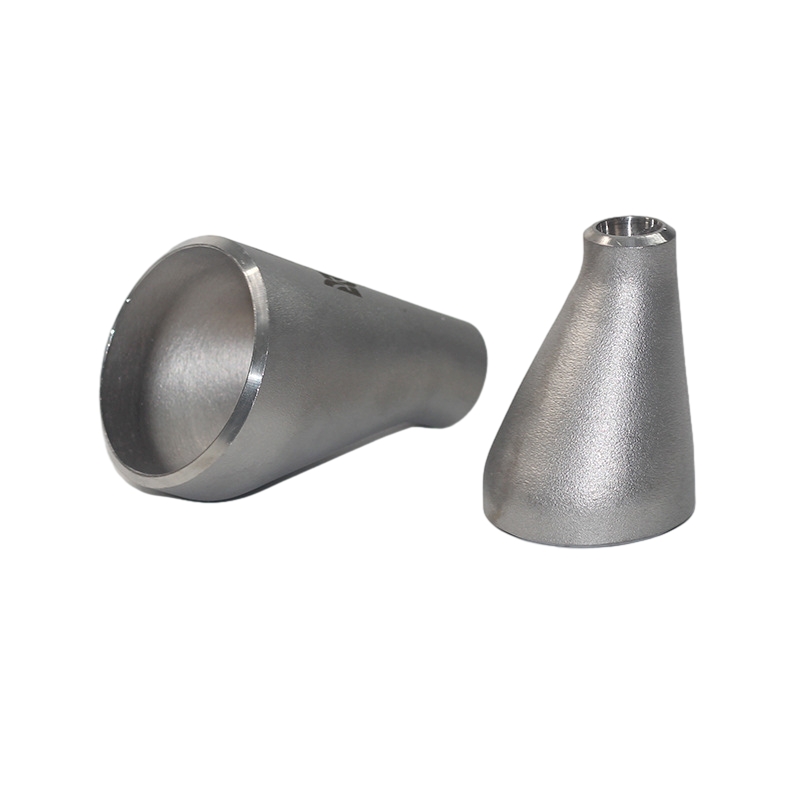

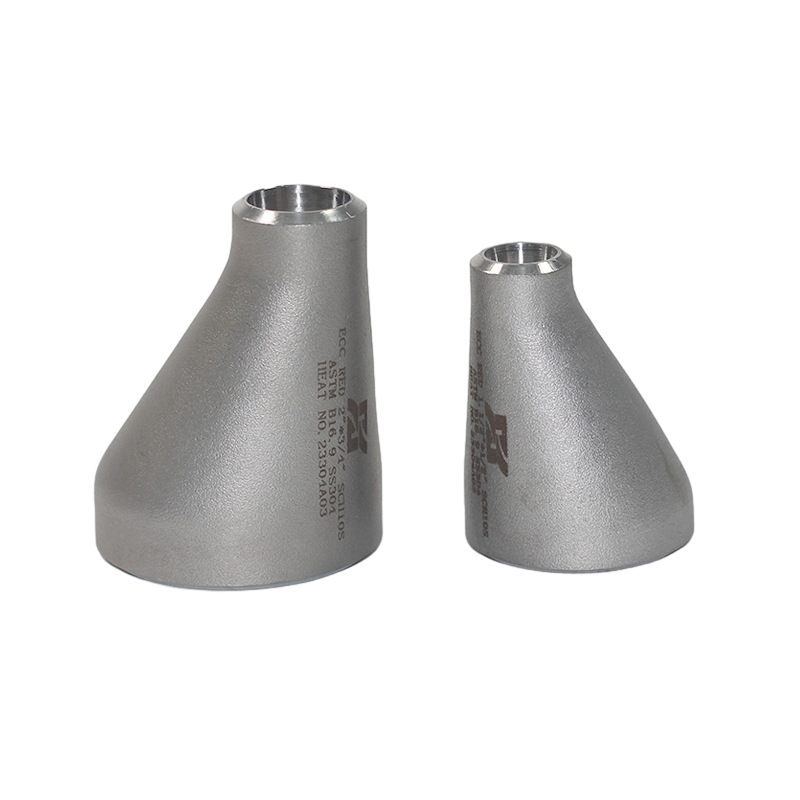

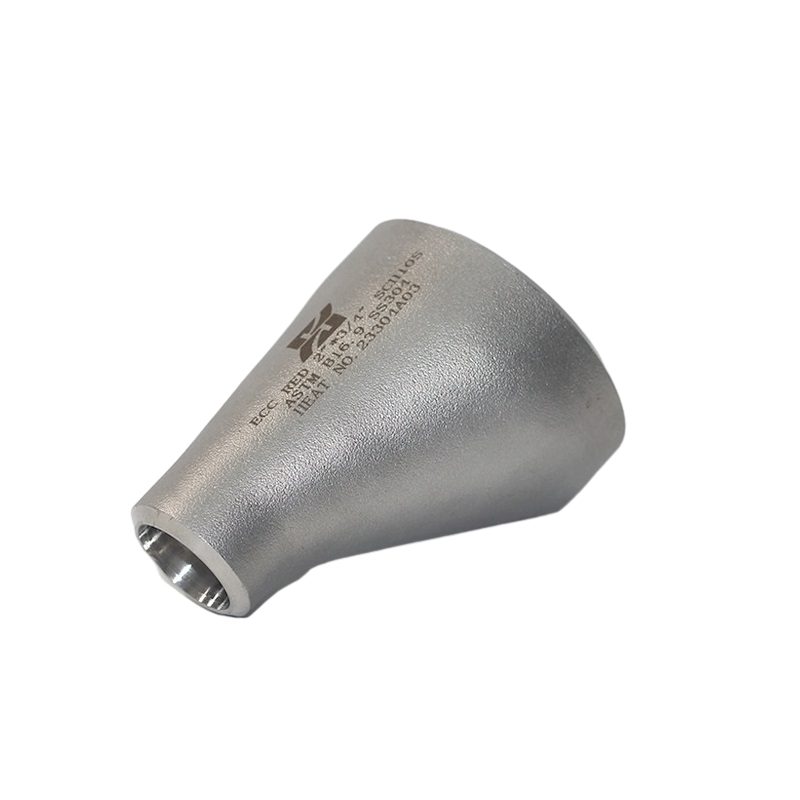

Schedule 10S 316L Butt Weld Stainless Steel Tube Eccentric Reducers

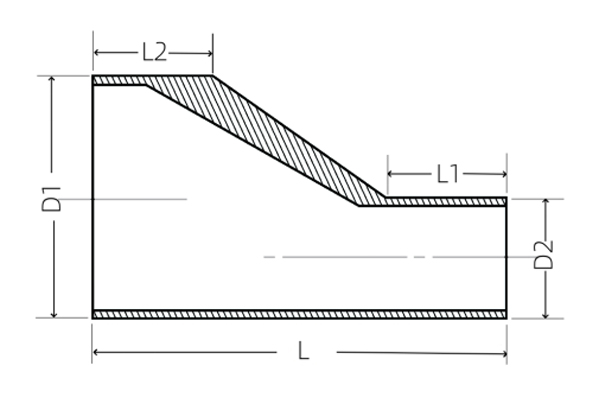

Stainless steel tube eccentric reducers a pipes composed of tapered or parabolic pipes of different lengths. It is used to connect two pipes with different diameters. The diameter and length of such pipes may be different, and the central axis of one port may Offset from the central axis of the other port.

Using stainless steel tube eccentric reducer connections allows them to transition smoothly, transferring fluid from one pipe to another and changing the pipe diameter in the process.

During the installation of the pump inlet reducer, in order to prevent gas accumulation at the reducer and avoid cavitation caused by errors during installation, an eccentric stainless steel reducer is used for the horizontal inlet pipe of the pump to prevent cavitation and to cooperate well with the joints of control valves, flow meters, and other instruments.

Stainless steel tube eccentric reducers usually do not require flanges to connect pipes. It can be used as a direct accessory to the pipeline, simplifying the process of pipeline connection. One end of one pipe is connected to one end of another pipe, and there is a certain offset between the central axes of the two pipes.

Typically, large pipes are located above and small pipes are located below, creating an eccentric structure. This structural design enables the eccentric reducer to achieve smooth fluid transfer in the pipeline system while reducing fluid resistance and pressure loss. Eccentric reducers are commonly used in piping systems in chemical engineering, food processing, petroleum, medicine

and other fields.
