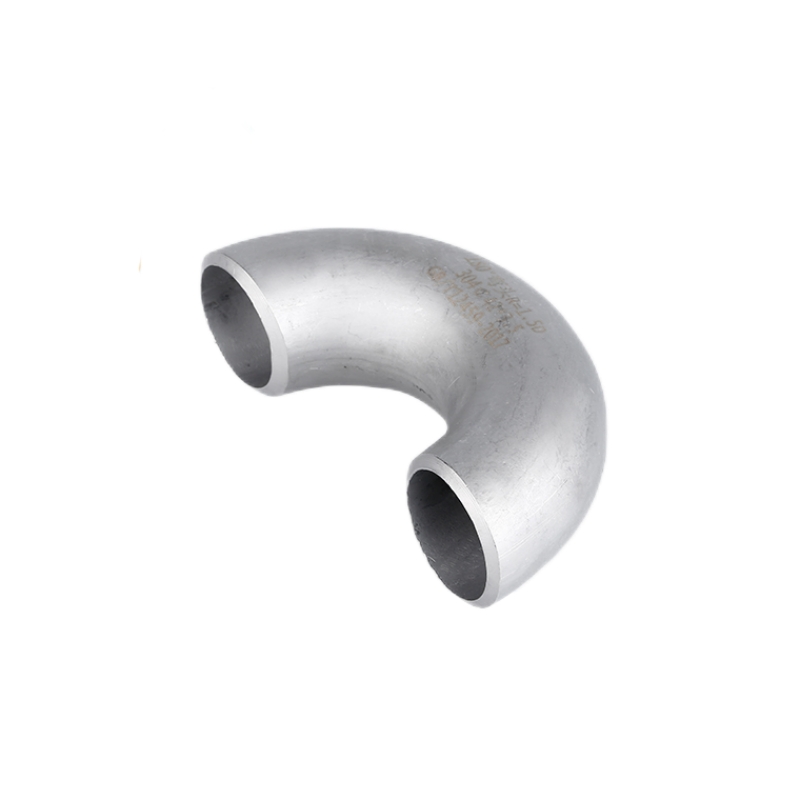

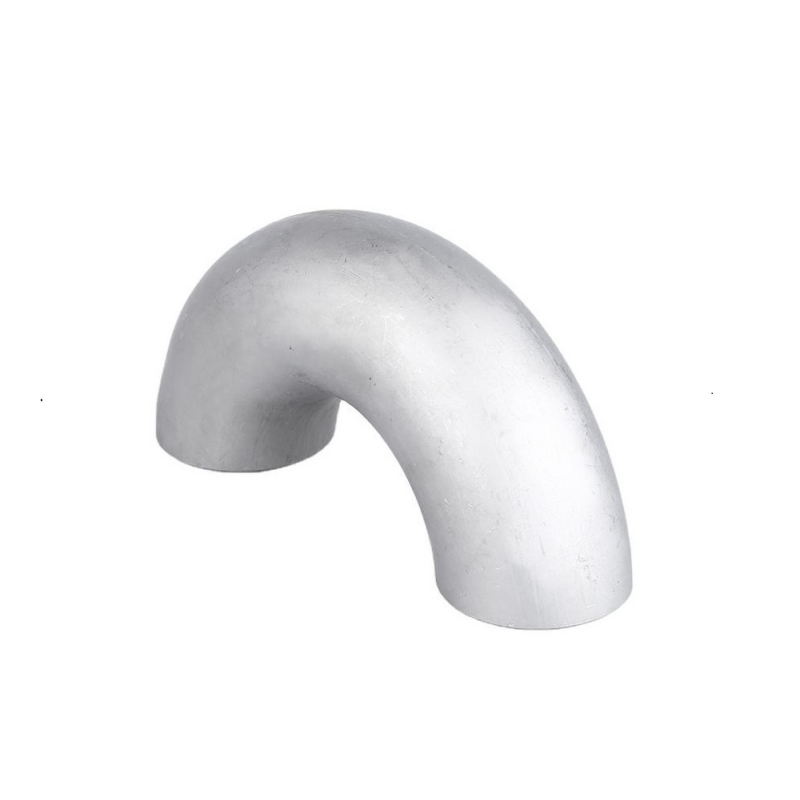

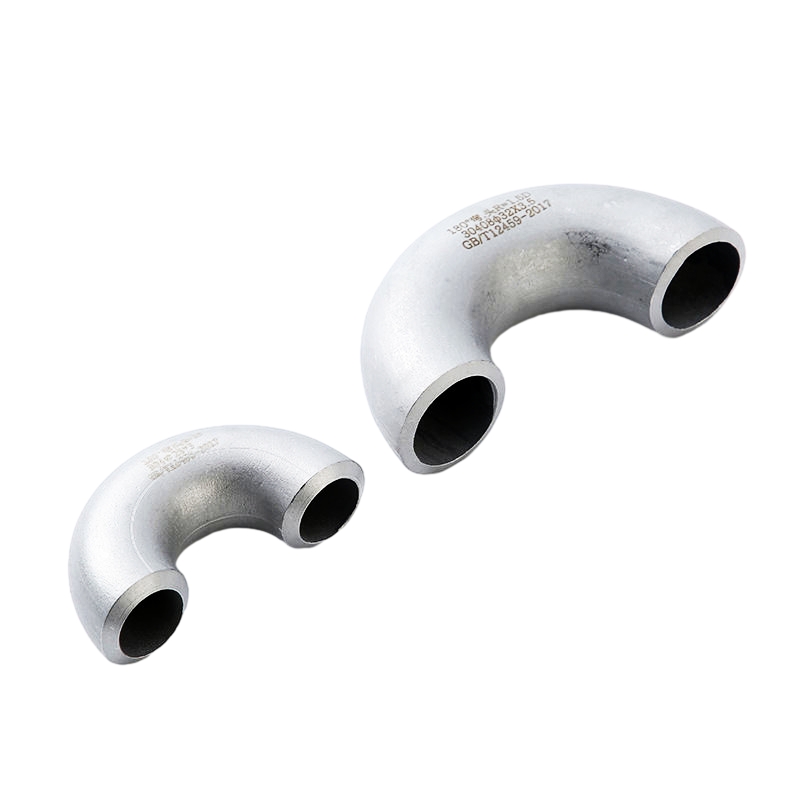

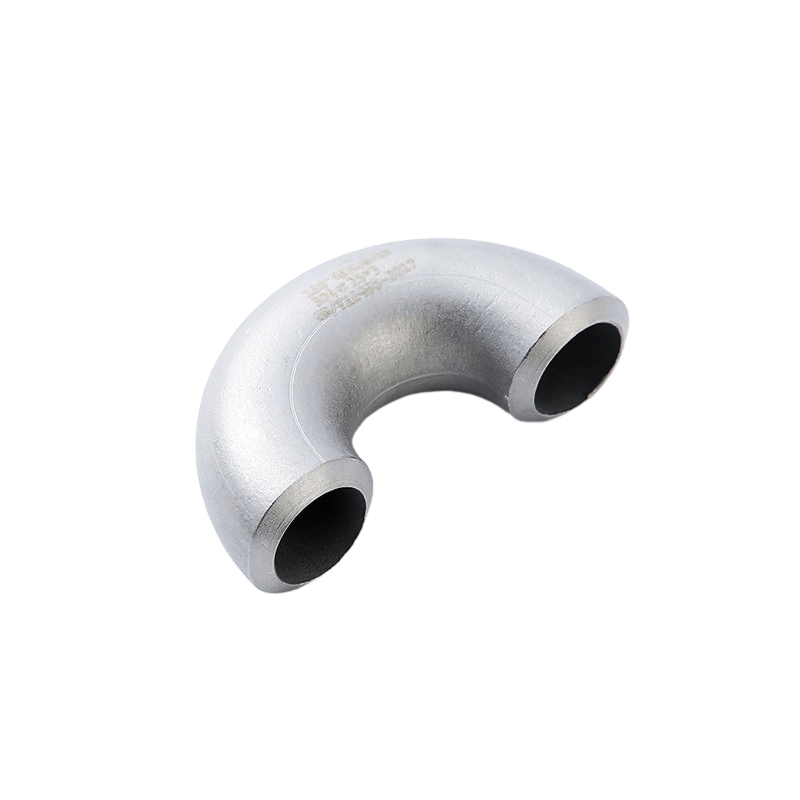

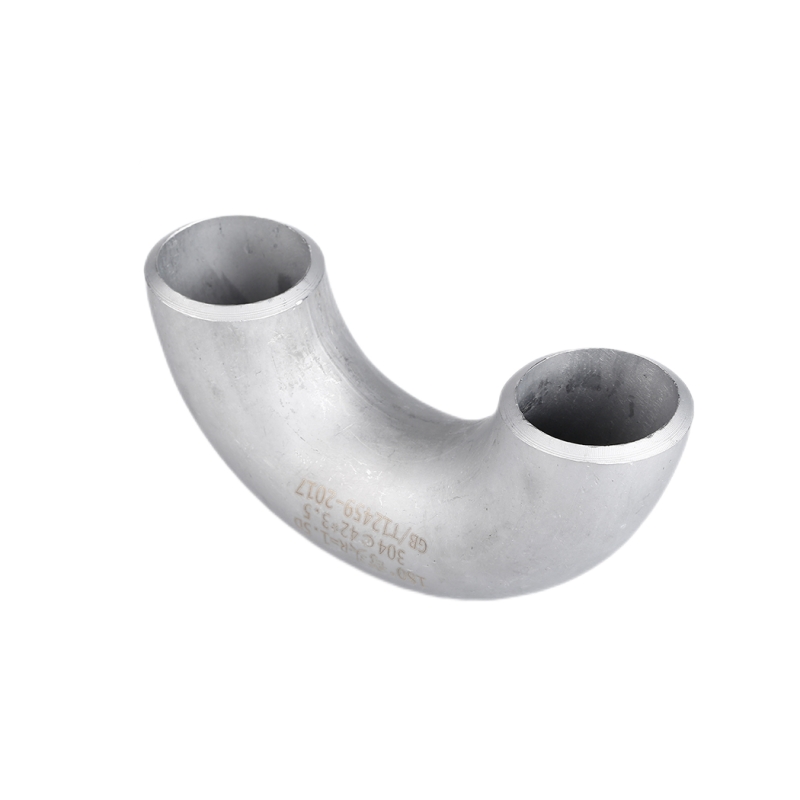

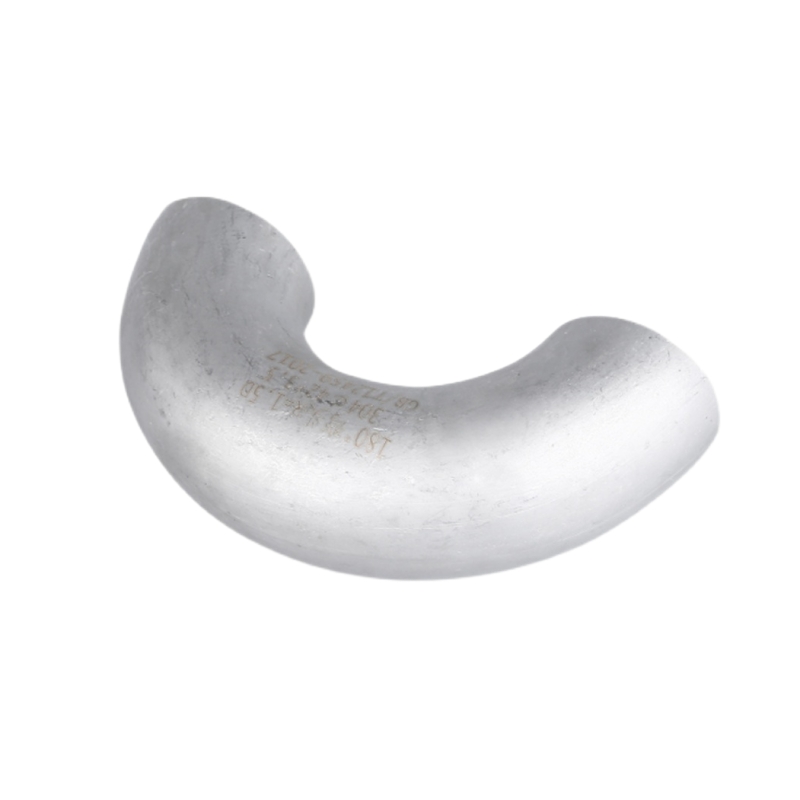

An elbow is a pipe fitting installed between two lengths of pipe or tubing to allow a change of direction, usually a 180° or 90° angle, 180-degree elbows are used to be installed between two lengths of pipe or tube allowing a change of 180 direction.
Usually, 180° elbow is made of duplex stainless steels, stainless steels, alloy steels, and more. We also manufacture customized products as per customers' requirements and ensure 99.9% quality and tested products.
These Buttweld 180 Degree Weld Fittings are manufactured to very high tolerances via hydroforming. Hydroforming results in a more uniform fitting that is easier to weld and polish.
Product Features: Bevels and lands accurately machined for good welding; True diameter maintained throughout the smooth bore for unrestricted flow; Full, uniform wall thickness for maximum strength; Clear identification of size, schedule or nominal wall thickness, material, and heat code.
A 180º elbow is commonly used in the Petrochemical Industry, Oil and Gas Industry, Nuclear Industry, Pulp &Paper Industry, Research & Development, Mega Projects & Defense & Development Industries.
Introduction
|
Item |
Stainless Steel 180°Elbows |
|
Standard |
ASME, ANSIB16.9; JIS B2311, 2312, 2313; DIN2605, 2615, 2616, 2617 etc. |
|
Material Grades |
Ansi WP304, 304L, 316, 316L, 316Ti, 317, 317L, 321, 321H, 904L, 310S, S31803, 2205, F51, 347H. |
|
Surface |
Rolling Sand, Mirror, Hairline, Sand Blast, Brush, Bright, etc. |
|
Type |
Casting, Welding |
|
size |
1-30” |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
Wooden cases, under the client's request. |
|
Application |
For use in the Pulp and Paper, Water Treatment, Sewage Treatment, Chemical, Biotech, Pharmaceuticals, Food, Mining, Architectural, Transportation, etc. |

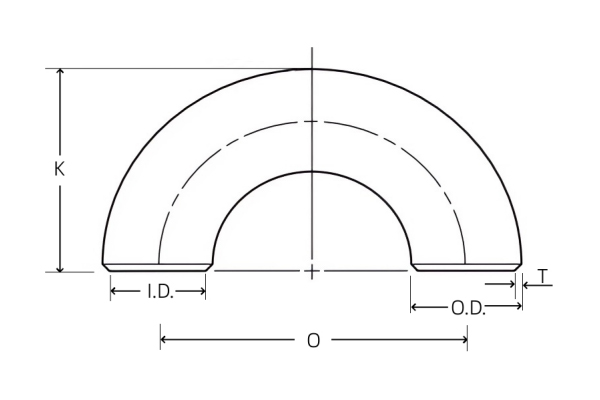

ASME B16.9 Short Radius Elbow
Unit: inch
|
Nominal Size |
Nominal Size |
Center to Center |
Back to Face |
Standard |
Extra Strong |
||||
|
Inside Diameter |
Wall Thickness |
Approx. Weight |
Inside Diameter |
Wall Thickness |
Approx. Weight |
||||
|
NPS(IN) |
O.D.(IN) |
O(IN) |
K(IN) |
I.D.(IN) |
T(IN) |
(Lb) |
I.D.(IN) |
T(IN) |
(Lb) |
|
1 |
1.315 |
2.0 |
1.62 |
1.049 |
0.133 |
0.50 |
0.957 |
0.179 |
-- |
|
1 1/4 |
1.660 |
2.5 |
2.06 |
1.380 |
0.140 |
0.75 |
1.278 |
0.191 |
-- |
|
1 1/2 |
1.900 |
3.0 |
2.44 |
1.610 |
0.145 |
1.00 |
1.500 |
0.200 |
1.50 |
|
2 |
2.375 |
4.0 |
3.19 |
2.067 |
0.154 |
1.80 |
1.939 |
0.213 |
3.00 |
|
2 1/2 |
2.875 |
5.0 |
3.94 |
2.469 |
0.203 |
3.50 |
2.323 |
0.276 |
4.50 |
|
3 |
3.500 |
6.0 |
4.75 |
3.068 |
0.216 |
6.00 |
2.900 |
0.300 |
7.50 |
|
3 1/2 |
4.000 |
7.0 |
5.50 |
3.548 |
0.226 |
8.00 |
3.364 |
0.318 |
11.00 |
|
4 |
4.500 |
8.0 |
6.25 |
4.026 |
0.237 |
12.00 |
3.826 |
0.337 |
15.50 |
|
5 |
5.563 |
10.0 |
7.75 |
5.047 |
0.258 |
19.00 |
4.813 |
0.375 |
27.00 |
|
6 |
6.625 |
12.0 |
9.31 |
6.065 |
0.280 |
31.00 |
5.761 |
0.432 |
45.00 |
|
8 |
8.625 |
16.0 |
12.31 |
7.981 |
0.322 |
62.00 |
7.625 |
0.500 |
92.00 |
|
10 |
10.750 |
20.0 |
15.38 |
10.02 |
0.365 |
110.00 |
9.750 |
0.500 |
142.00 |
|
12 |
12.750 |
24.0 |
18.38 |
12.00 |
0.375 |
156.00 |
11.750 |
0.500 |
200.00 |
|
14 |
14.000 |
28.0 |
21.00 |
13.25 |
0.395 |
208.00 |
13.000 |
0.500 |
264.00 |
|
16 |
16.000 |
32.0 |
24.00 |
15.25 |
0.375 |
236.00 |
15.000 |
0.500 |
320.00 |
|
18 |
18.000 |
36.0 |
27.00 |
17.25 |
0.375 |
296.00 |
17.000 |
0.500 |
388.00 |
|
20 |
20.000 |
40.0 |
30.00 |
19.25 |
0.375 |
420.00 |
19.00 |
0.500 |
560.00 |
|
22 |
22.000 |
44.0 |
-- |
21.25 |
0.375 |
-- |
21.000 |
0.5000 |
-- |
|
24 |
24.000 |
48.0 |
36.00 |
23.25 |
0.375 |
576.00 |
23.00 |
0.500 |
740.00 |
|
26 |
26.000 |
52.0 |
-- |
25.25 |
0.375 |
-- |
25.00 |
0.500 |
-- |
|
30 |
30.000 |
60.0 |
45.00 |
29.25 |
0.375 |
960 |
29.00 |
0.500 |
1272.00 |
