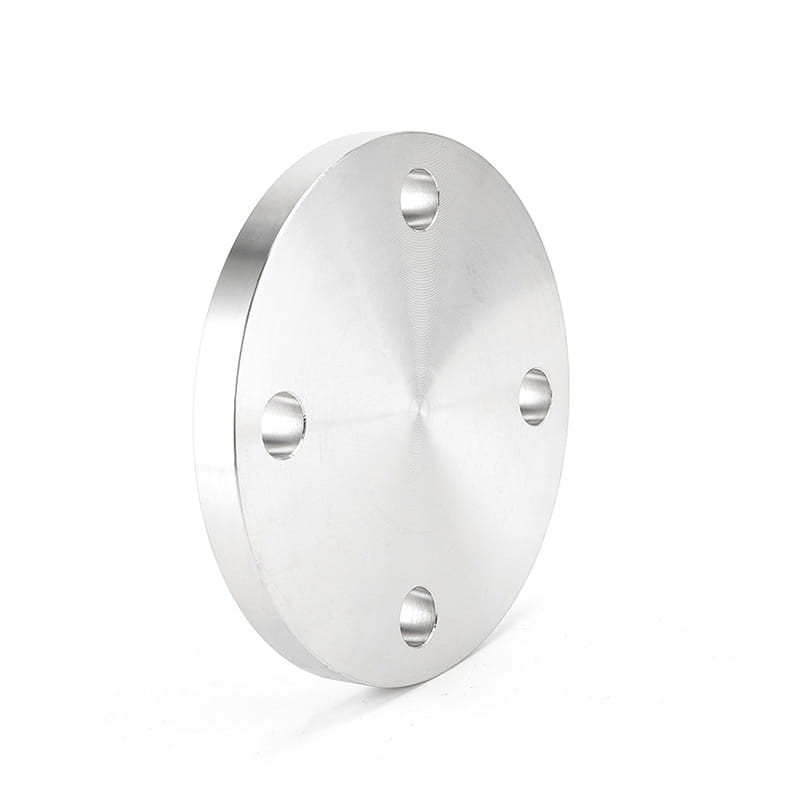

A blind Flange is a solid steel plate without holes. It is used to terminate the end of a piping system. It may be used for isolating a pipe, valve, or pressure vessel. Because it is bolted, the blind flange provides easy access to the interior of a vessel or pipe. A blind flange can replace a butt weld cap in case an extension of the piping line is required, or in case a piping inspection is required.

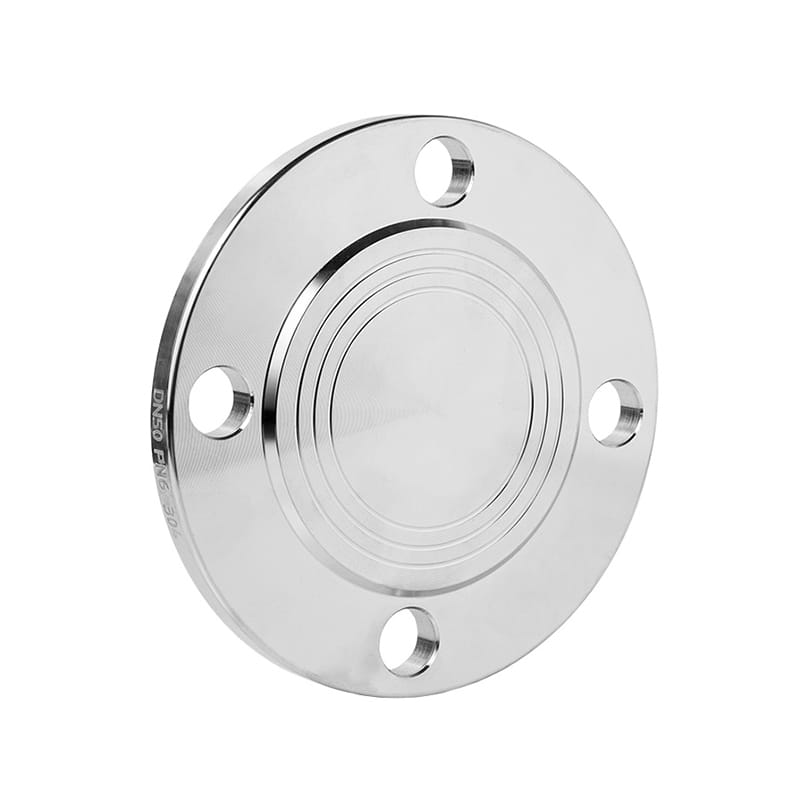

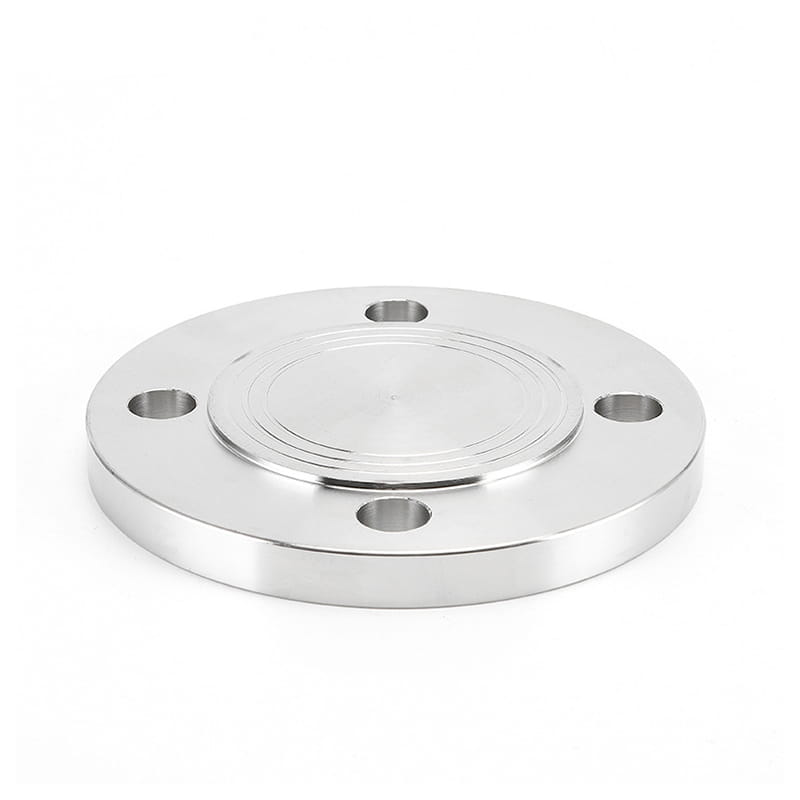

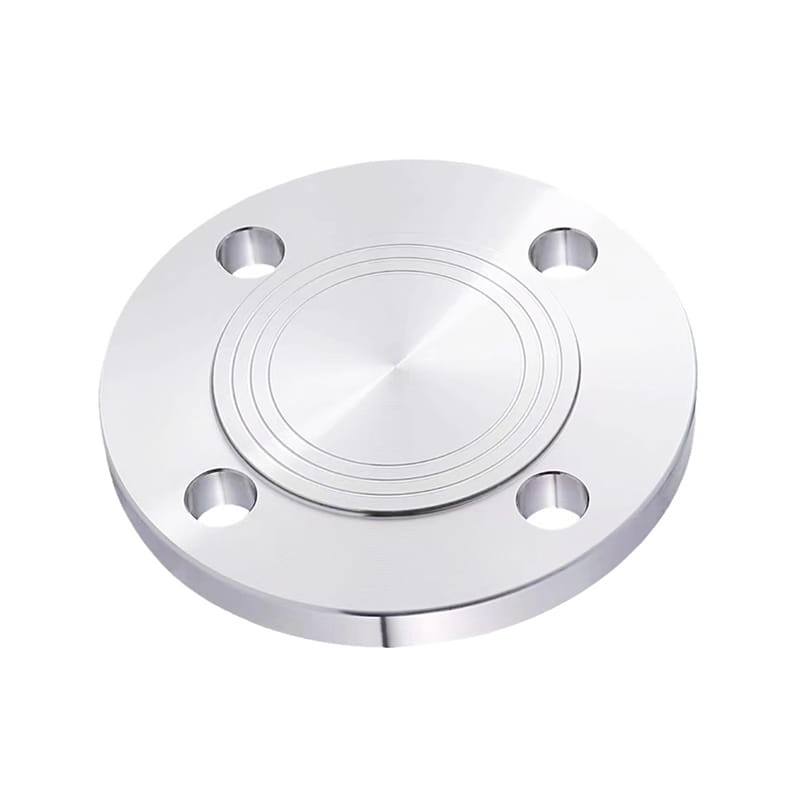

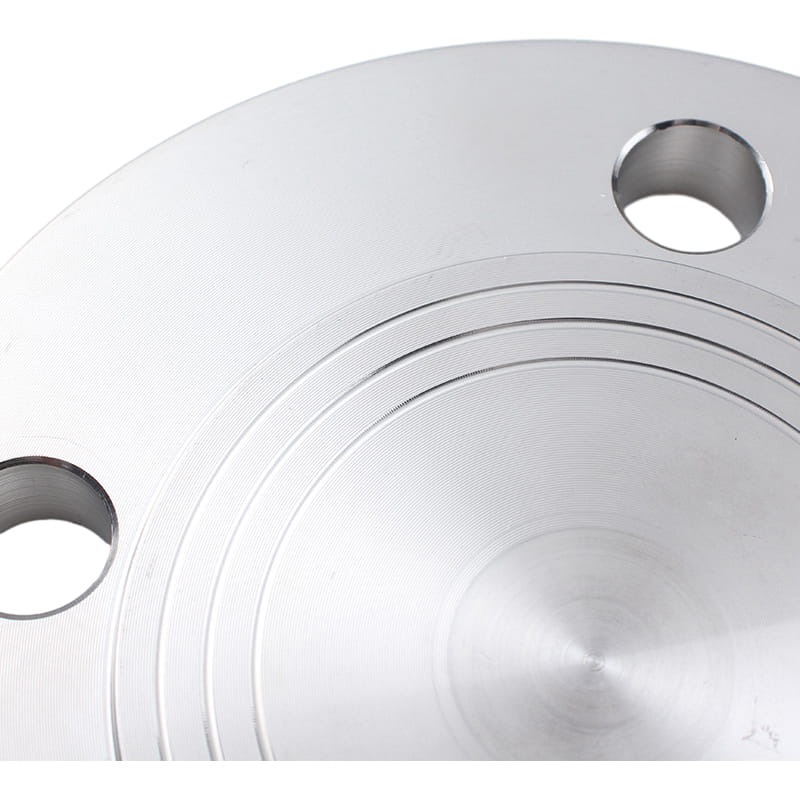

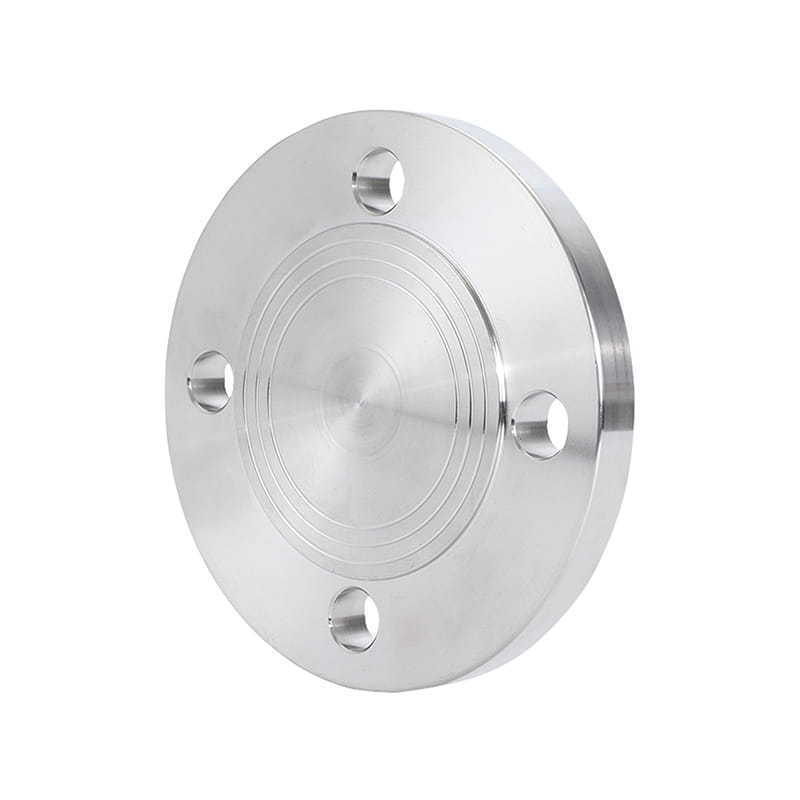

Many blind flanges have a basic structure that, unlike other flanges, requires little machining and is heavy because it has no holes. This type of flange is solid with no bore and can have a flat face(FF) or raised face(RF).

Blind flanges are commonly used in petrochemicals, pipe engineering, public services, and water works.

PREV：PN10 Standard Raised Face(RF) Metal Sorf Blind Flange Cap With Thru Holes
NEXT：No next article

Introduction

Standard	ANSI： ANSI B16.5、ANSI B16.47、MSS SP44、ANSI B16.36、ANSI B16.48 DIN： DIN2527、DIN2566、DIN2573、DIN2576、DIN2641、DIN2642、DIN2655、DIN2656、DIN2627、DIN2628、DIN2629、DIN 2631、DIN2632、DIN2633、DIN2634、DIN2635、DIN2636、 DIN2637、DIN2638、DIN2673 BS： BS4504、BS4504、BS1560、BS10
Material	Stainless Steel, Carbon Steel, Alloy Steel, Cupro Nickel (90/10, 70/30, 66/30/2/2), Hastelloy (C-4, C-22, C276, B-2), Nickel (200 / 201), Monel (400 & K500), Inconel (600, 601, 625 & 825), Incolloy (800, 800H), Alloy 20, Duplex Steel, SS 904L, Titanium (1 & 2) Etc.
Surface	Anti-rust oil, black paint, yellow paint, zinc plating, hot-dip galvanizing, electro-galvanizing, epoxy coating
Type	Forging, casting, CNC cutting
size	1/2" to 60", DN15 to DN1500
Delivery time	Within 5-30 days after receiving the prepaid
Packing	Plywood Pallet, Wooden Pallet, Wooden Case, etc.
Application	Blind flanges are commonly used in petrochemicals, pipe engineering, public services, and water works.

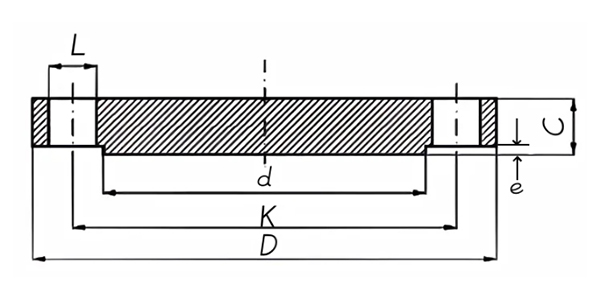

Blind Flanges-PN6

DN	D	K	L	No HOLES	BOLT	e	d	C
10	75	50	11	4	M10	2	35	12
15	80	55	11	4	M10	2	40	12
20	90	65	11	4	M10	2	50	14
25	100	75	11	4	M10	2	60	14
32	120	90	14	4	M12	2	70	14
40	130	100	14	4	M12	3	80	14
50	140	110	14	4	M12	3	90	14
65	160	130	14	4	M12	3	110	14
80	190	150	18	4	M16	3	128	16
100	210	170	18	4	M16	3	148	16
125	240	200	18	8	M16	3	178	18
150	265	225	18	8	M16	3	202	18
200	320	280	18	8	M16	3	258	20
250	375	335	18	12	M16	3	312	22
300	440	395	22	12	M20	4	365	22
350	490	445	22	12	M20	4	415	22
400	540	495	22	16	M20	4	465	22
450	595	550	22	16	M20	4	520	24
500	645	600	22	20	M20	4	570	24
600	755	705	26	20	M24	5	670	30
700	860	810	26	24	M24	5	775	40
800	975	920	30	24	M27	5	880	44
900	1075	1020	30	24	M27	5	980	48
1000	1175	1120	30	28	M227	5	1080	52
1200	1405	1340	33	32	M30	5	1295	60
1400	1630	1560	36	36	M33	5	1510	68
1600	1830	1760	36	40	M33	5	1710	76
1800	2045	1970	39	44	M36	5	1920	84
2000	2265	2180	42	48	M39	5	2125	92

Blind Flanges-PN10

DN	D	K	L	No HOLES	BOLT	e	d	C
10	90	60	14	4	M12	2	40	16
15	95	65	14	4	M12	2	45	16
20	105	75	14	4	M12	2	58	18
25	115	85	14	4	M12	2	68	18
32	140	100	18	4	M16	2	78	18
40	150	110	18	4	M16	3	88	18
50	165	125	18	4	M16	3	102	18
65	185	145	18	8	M16	3	122	18
80	200	160	18	8	M16	3	138	20
100	220	180	18	8	M16	3	158	20
125	250	210	18	8	M16	3	188	22
150	285	240	22	8	M20	3	212	22
200	340	295	22	8	M20	3	268	24
250	395	350	22	12	M20	3	320	26
300	445	400	22	12	M20	4	370	26
350	505	460	22	16	M20	4	430	26
400	565	515	26	16	M24	4	482	26
450	615	565	26	20	M24	4	532	28
500	670	620	26	20	M24	4	585	28
600	780	725	30	20	M27	5	685	34
700	895	840	30	24	M27	5	800	38
800	1015	950	33	24	M30	5	905	42
900	1115	1050	33	28	M30	5	1005	46
1000	1230	1160	36	28	M33	5	1110	52
1200	1455	1380	39	32	M36	5	1330	60
